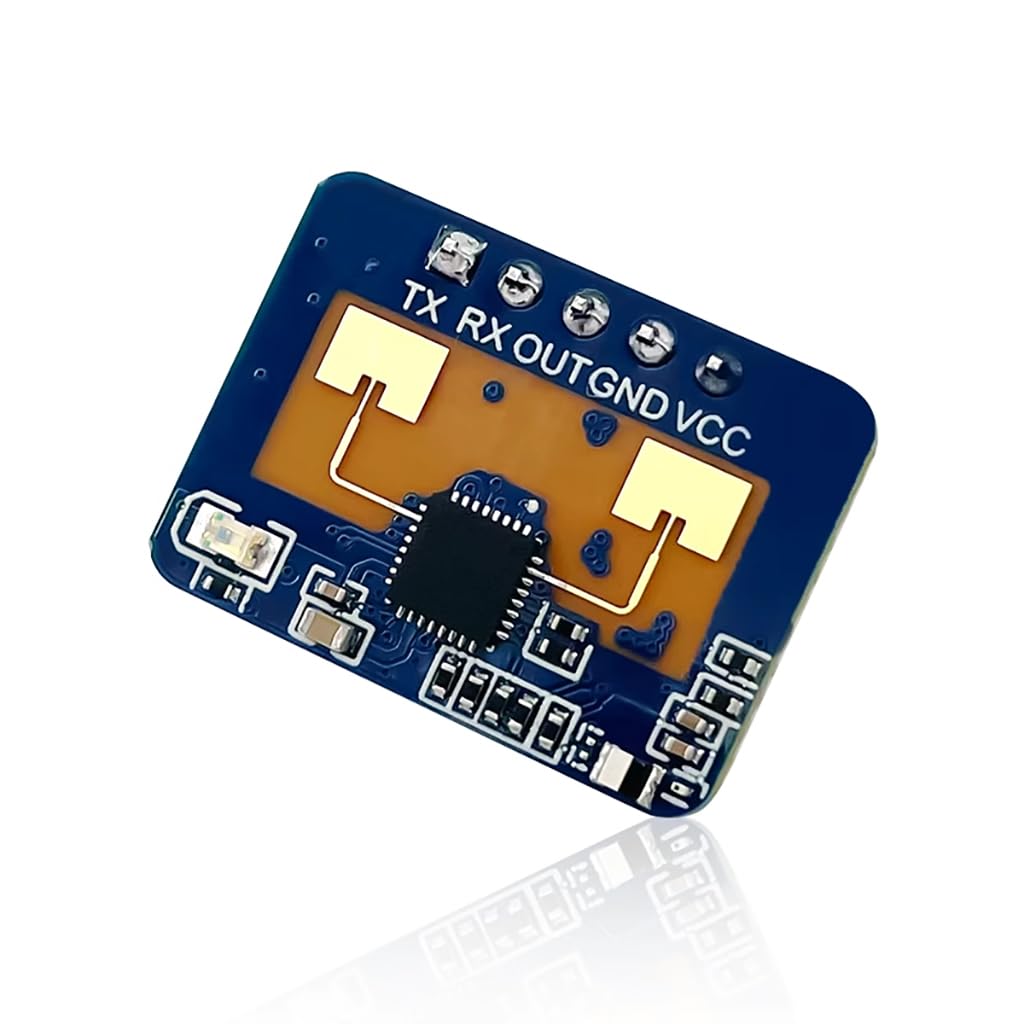

HLK-LD2410 24G FMCW 24GHz Human Presence Sensing Radar Module Smart Ld2410 Millimeter Wave Motion Switch Sensor I4262550682

About This Product

2410C Radar Module 5 Pack HLK-LD2410 24G FMCW 24GHz Human Presence Sensing Radar Module Smart Ld2410 Millimeter Wave Motion Switch Sensor I4262550682 Human Detection Sensor 0.75-6m HLK LD2410C 24G mmWave FMCW Millimeter Wave 5M Human Presence Status If Blue¡¤tooth-compatible is off and the serial port cannot be used, power off and on for more than 5 times within 2~3s, then Blue¡¤tooth-compatible can be turned on again. or set the mode parameter information. 2410C Module: A highly sensitive 24GHz human presence sensor module, which works on the principle of utilizing FMCW frequency modulated continuous wave (FMCW) to detect human targets in a given space. Serial port default baud rate 256000, 1 stop bit, no parity bit. 24G mmWave LD2420 Human Presence Radar Sensor Motion Detection Module... It is a high-sensitivity module that can identify human presence in motion or at rest and can also calculate auxiliary information like the distance to the target. The module is designed for indoor use and can be configured to adjust the detection distance and sensitivity 2410C 24G Human Presence Sensor Ra¡¤dar Module FMCW Modulation Compatible with Blue-tooth APP Product Features -Frequency : 24G-24., 25GHz -Modulation type: FMCW -Detection distance : 0., 75~6m adjustable -Detection Angle : ¡À 60¡ã -Power supply : 5V -Current : ~79mA -Output Serial Level : 3., 3V -Sweep bandwidth: 250MHz (CE/FCC compliant) -Ambient Temperature : -40¡æ~+85 -Data Format : Serial ASCIl Output/High/Low Level 3., 3V&OV -Package: Default with pin Configuration Debugging: Interface Type: (1., 27mm x 5PIN) 1: RX, Serial Receive 2: TX, Serial Transmit 3: OUT, sense output high level 4: GND, power ground 5: VCC, power supply input (5V) Configuration utility description (PC side utility is the same as LD2410) After connecting the module, open the Configuration Tool without clicking the Start button. If Blue¡¤tooth-compatible is turned off and you can't use the serial port, you can turn off the power continuously within 2~3s and then power on the power more than 5 times to turn on Blue¡¤tooth-compatible again.
